76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate

76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate

  • 76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate
  • 76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate
  • 76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate
  • 76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate
76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: 76.8V525Ah-DT-0002
Payment & Shipping Terms:
Minimum Order Quantity: One piece
Price: Negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: It can be customized according to user needs, and the delivery time is determined according to the product
Payment Terms: EFT
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Lithium Iron Phosphate Battery System For Tractors Product Model: 76.8V525Ah-DT-0002
Rated Capacity: 525Ah Rated Voltage: 76.8V
Rated Power: 40.32KWh Battery Pack Size: 885mm*470mm*650mm
Battery Pack Weight: 315Kg IP Degree: IP67
High Light:

40.32KWh Lithium Tractor Battery

,

76.8V525Ah Powerful Tractor Battery

,

76.8V525Ah Lithium Tractor Battery

76.8V525Ah 40.32KWh IP67 Battery Lithium Battery Lithium Iron Phosphate EIKTO Powerful Tractor Battery

Technical Parameters



Product name Lithium battery system for tractor
Product combination mode 3P24S
(Rated capacity) 525Ah
(Rated voltage) 76.8V
(Rated power) 40320Wh
System charging termination voltage 86.4V
System discharge termination voltage 60V
Monomer charging termination voltage 3.6V
Monomer discharge termination voltage 2.5V
Maximum sustainable charging current 200A
Maximum sustainable discharge current 250A
Charging temperature range Charging temperature: 0~55℃
Discharge temperature range Discharge temperature: - 20 ~55℃
Storage temperature -20~60℃
Working humidity 10%RH~90%RH
Battery pack weight ≈315kg
Size 885mm*470mm*650mm
Degree of protection IP67
Heat dissipation mode Natural heat dissipation





Product Description



76.8V525Ah 40.32KWh IP67 Lithium battery for tractors BMS Module



1. This product is a lithium iron phosphate tractor power battery system. A 72-core battery module is used in this product, and the battery model is YJT40110413-175AH, which is composed of 3paralell and 24series connection. The rated voltage is 76.8V and the capacity is 525Ah. The product is used in tractor products.

It has the characteristics of good safety, high energy density, long cycle life and high reliability.

2. The battery management system matched with this product is an integrated battery management system (BMS) for lithium ion batteries of tractors. The product has battery state acquisition, battery state estimation, fault analysis and diagnosis, energy management, information management and other functions. It has strong applicability and expansibility, with high integration, high security,great value,and other characteristics.



Product Advantages



1 The battery system can match the power display function, the battery can be equipped with a display screen, to display the battery related parameters, including the battery voltage, power and other related parameters. The specific display mode can be customized according to customer requirements.

2. Battery system CAN provide two CAN communication, one 485 communication; Therefore, the external communication of the product can be realized, such as charging machine, motor controller or vehicle controller and other equipment. Specific communication mode can be customized according to vehicle system requirements.

3, standard modular design, 3P24S module is a standard module we developed, the module is installed in the battery pack, with flexible use, replicability and a series of characteristics. This module can be flexibly used in a variety of scenarios.

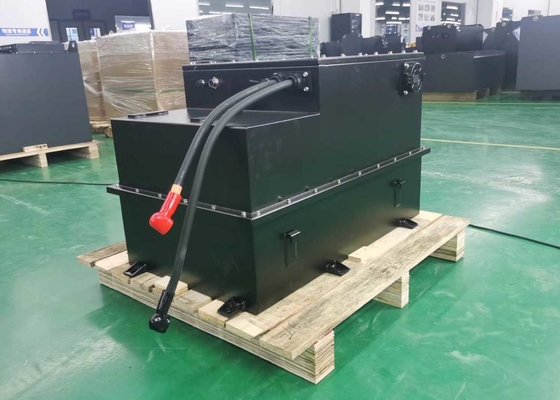

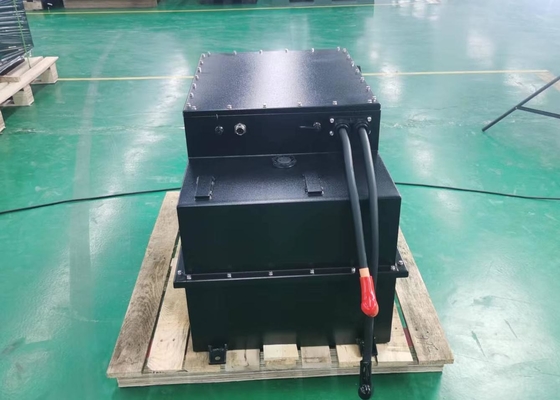

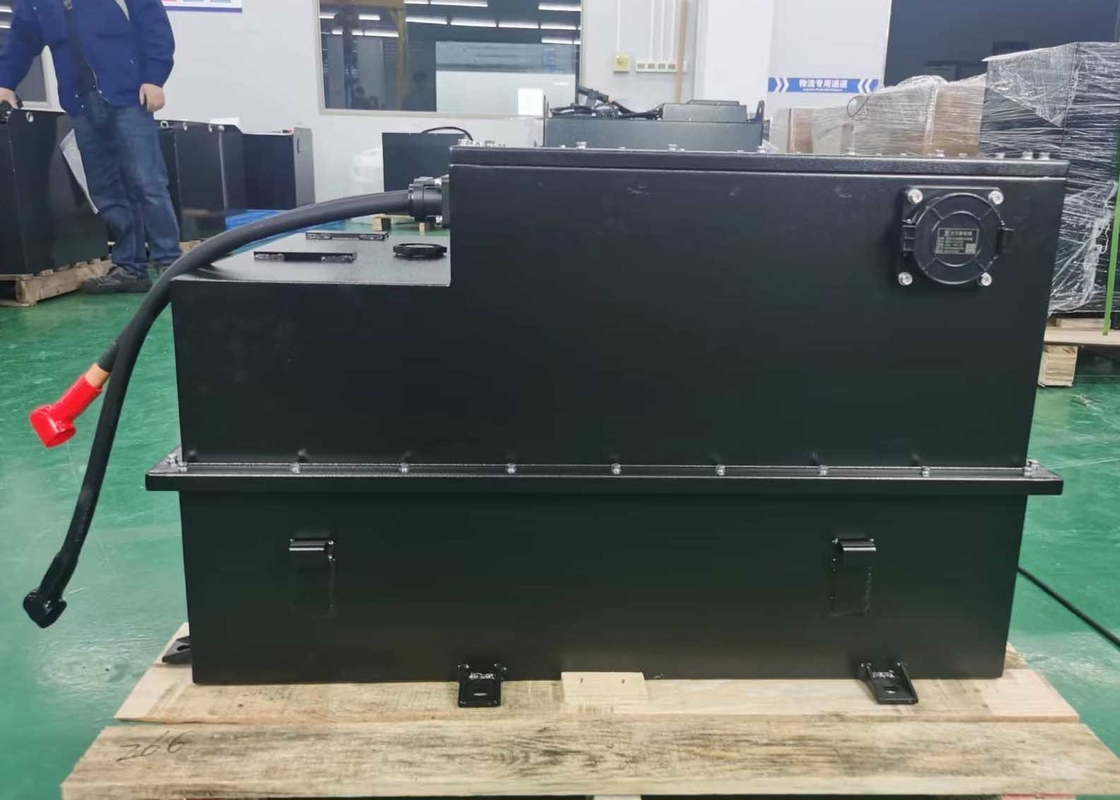

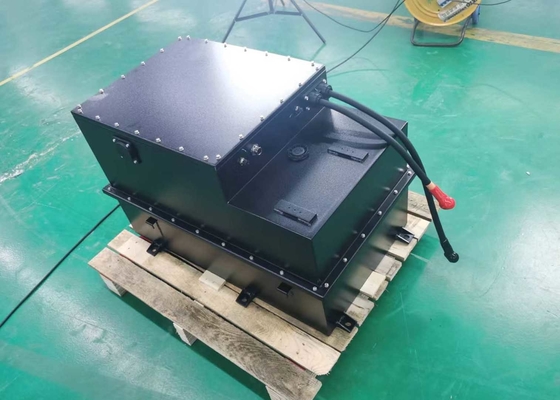

Samples Show



76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 076.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 176.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 276.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 3





Application



Applied to electric tractors



76.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 476.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 576.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 676.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 776.8V525Ah 40.32KWh Lithium Tractor Battery Lithium Iron Phosphate 8



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages


1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
