EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/UN38.3/SDS |
| Model Number: | Toyota 7FB30 83.2V 300AH |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | Negotiable |

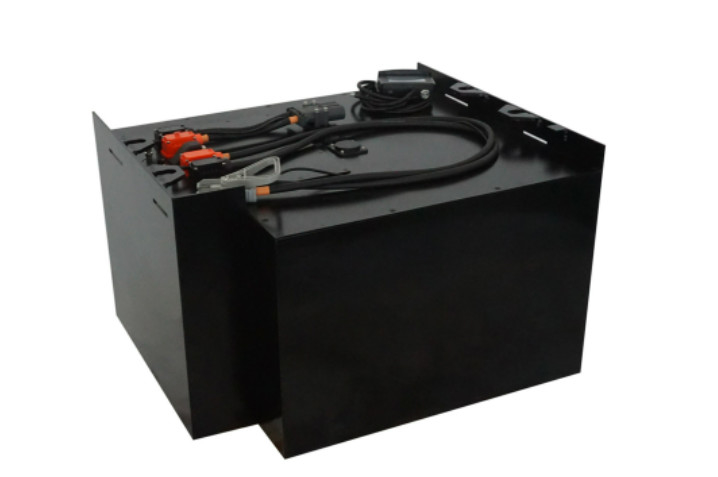

| Product Name: | Toyota 7FB30 83.2V 300AH Lithium Battery For Electric Truck | Product Model: | Toyota 7FB30 83.2V 300AH |
|---|---|---|---|
| Rated Capacity: | 300AH | Rated Voltage: | 83.2V |
| System Charging Termination Voltage: | 57.6V | System Discharge Termination Voltage: | 41.6V |
| Storage Temperature: | -20~60℃ | Working Humidity: | 10%RH~90%RH |
EKT Lithium Iron Phosphate (LiFePO4) batteries have high efficiency, making them the best choice for material handling equipment such as forklift, cleaning machine, aerial platform, golf car, and other applications.
The battery management system matched with this product is an integrated battery management system (BMS) for yacht lithium-ion batteries. It has the functions of battery state acquisition, battery state estimation, fault analysis and diagnosis, energy management, information management, collision signal detection, high voltage interlock detection and so on. It has strong applicability and expansibility, and has the characteristics of high integration, high security and high cost performance.
| Technical data | |
| Rated capacity | 300 Ah |
| Rated voltage of battery | 83.2 V |
| Rated voltage of truck | 80 V |
| Rated energy content | 24960 Wh |
| Cell chemistry | Lithium iron phosphate |
| Cell temperature range | -20℃ to 60 ℃ |
| Working environment temperature | -20℃ to 50 ℃ |
| Charging environmental temperature | 0℃ to 55 ℃ |
| IP Rating | IP54 |
| Weight | 1180 kg |
| Dimension | 946X815X589 mm |
Application areas: The products are mainly used in Toyota 7FB30
