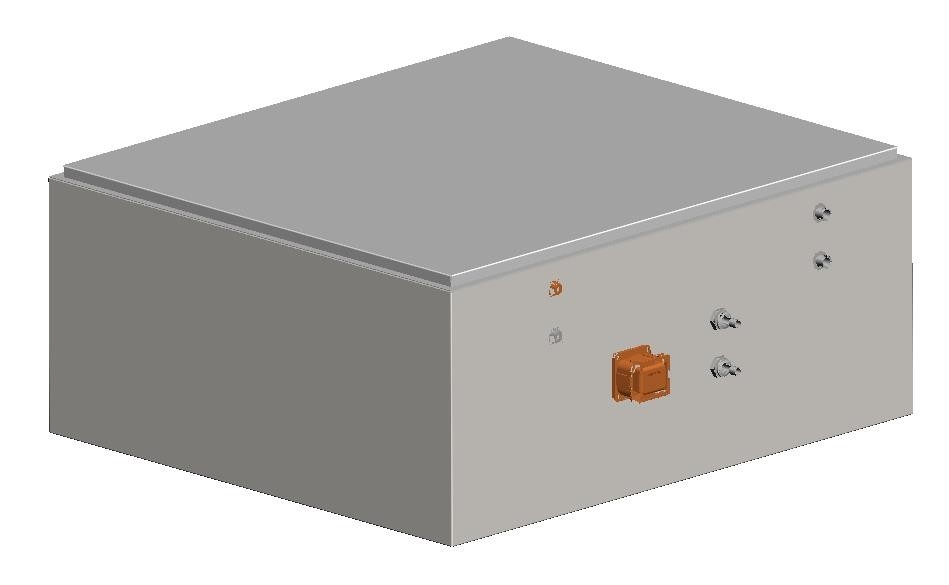

614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack

614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack

  • 614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack
614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack
Product Details:
Place of Origin: Anhui China
Brand Name: EIKTO
Certification: CE/UL/UN38.3/SDS
Model Number: YJT45125450-230Ah-192S1P
Payment & Shipping Terms:
Minimum Order Quantity: A minimum
Price: negotiable
Packaging Details: Standard safety industrial packaging
Delivery Time: Can be customized according to user requirements, delivery time according to the product
Payment Terms: Transfer accounts
Supply Ability: +99999
Contact Now
Detailed Product Description
Product Name: Mechanical Loader Lithium Iron Phosphate Battery Pack Product Model: YJT45125450-230Ah-192S1P
Rated Capacity: 255Ah Rated Voltage: 614.4V
Rated Power: 156.67 KWh Battery Pack Size: 1311mm*1150mm*560mm
Battery Pack Weight: 1200Kg Insulation Resistance: ≧50MΩ(DC1000V)
High Light:

255Ah Loader Battery

,

156.67 KWh lithium battery pack

,

614.4V Loader Battery

192S1P 614.4V/255Ah 156.67 KWh Lithium Battery Battery Pack Of Mechanical Loader System

Technical Parameters



NO. Item Specification Remark
1 Dimension 1311mm*1150mm*560mm /
2 Combination mode 1P192S /
3 Rated Capacity 255Ah 25±2℃,1.0C
4 Nominal Voltage 614.4V /
5 insulation resistance ≧50MΩ(DC1000V) 25±2℃
6 Module Weight ≈1200kg /
7 Module energy 156.67kWh /
8 Max Charging Voltage 691.2V /
9 Maximum Continuous Charging Current 1C 25±5℃
10 Discharge Cut-off Voltage 537.6V /
11 Max. Continuous Discharging Current 1.5C 25±5℃
12 Heat dissipation mode Liquid cooling /


Rack Technical Parameters



Product name Mechanical Loader Lithium Iron Phosphate Battery Rack
Product combination mode 2P 192S
Rated capacity 510Ah
Rated voltage 614.4 V
Rated power 313.34 kWh
System charging termination voltage 691.2V
System discharge termination voltage 537.6 V
Cell charging termination voltage 3.6 V
Cell discharge termination voltage 2.8 V
Maximum sustainable charging current 1C
Maximum sustainable discharge current 1.5C
Charging temperature range Charging temperature: 0~55℃
Discharge temperature range Discharge temperature: - 20 ~55℃
Storage temperature -20~45℃
Working humidity 10%RH~70%RH
Battery pack weight ≈2650kg
(size) 1450(L)*1340(W)*1265(H)



Product Description





This product is lithium iron phosphate mechanical loader battery system E box, with liquid cooling function. It has the characteristics of good safety performance, long cycle life and high reliability. The module is composed of YJT45125450-255Ah single battery in series. The rated voltage of a single box is 614.4V and the capacity of a single box is 255Ah. This product is applied to electric heavy truck, bus, etc. The battery system can support continuous operation at full power. A single box supports series and parallel operation.

The battery management system matched with this product is an integrated battery management system (BMS) for cars lithium-ion batteries. It has the functions of battery state acquisition, battery state estimation, energy management, information management, and so on. It has strong applicability and expansibility, and has the characteristics of high integration, high safty and high cost performance.



Product Advantages



1,Apply with255Ah high capacity cell

The module adopts the 255Ah high-capacity prismatic lithium iron phosphate battery independently developed by our company.

a. The positive and negative terminal are distributed on both sides of the cell to avoid heat concentration;

b. The battery roll foil is designed with all-pole lugs to increase the ability of over current;

c. The battery shell adopts aluminum shell, which has high mechanical strength and good heat dissipation performance;

d. Long cycle life, can reach more than 3500 times;

e. Adopt high-capacity cells to reduce the number of parallel cells;

2,Intelligent thermal management function.

The battery pack has intelligent heat management functions. The battery pack is equipped with a liquid cooling pipe. When the sensor detects that the temperature of the battery exceeds T1 ℃, the BMS sends out a signal to activate the liquid cooling system to force the battery to cool, ensuring that the battery operates at a comfortable temperature. When the cell temperature drops to T2 ℃, the BMS will signal the liquid cooling system to stop cooling. Intelligent thermal management strategy can be highly efficient and low-energy to avoid overheating of the battery.

3.192S1P is a standard battery pack developed by us. The pack is installed in the battery rack, and the battery system is formed in series. Battery systems can be flexibly composed of different quantities and sizes through series and parallel connections. It can cover 56.5-850kWh energy demand.

Safety Design

4.1 Using high safety material lithium iron phosphate material system, through thermal runaway experiment;

4.2 Strict cells march in pack level requirement, to ensure the consistency of the battery cluster;

4.3 High precision BMS, to ensure that the battery will not overcharge and discharge;

4.4 Reasonable DOD charging and discharging depth ensures the cycle life of the battery;

4.5 The battery system has a high voltage control box, which can cut off the circuit immediately in extreme cases and reduce the occurrence of disasters.



Samples Show



614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack 0614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack 1





Application



Application: electric loader



614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack 2614.4V 255Ah Loader Battery Mechanical Loader System Lithium Battery Battery Pack 3



Packaging & Delivery



1. Guaranteed delivery time.

2. Well-trained and disciplined packing team.

3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

4. Sophisticated and professional logistic agent.



Competitive Advantages



1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
