EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/UN38.3/SDS |
| Model Number: | EK-CP-0649 |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Rated Capacity: | 450Ah | Rated Voltage: | 48V |
|---|---|---|---|
| Model Size: | 970mm*600mm*470mm | Vehicle Weight: | 734kg |
| 2 Combination Mode: | 3P15S | High Resistance: | ≧50MΩ(DC500V) |
| Total Power Of Module: | 21.6kwh | Standard Cycle Life: | ≥4000 Times 80%Capacity Retention |
| High Light: | Golf Cart Lithium Battery 450ah,lithium ion rechargeable battery,Golf Cart Lithium Battery 48v |
||
| NO. | Item | Specification | Remark |
| 1 | Size | 970mm*600mm*470mm | / |
| 2 | Combination mode | 3P15S | / |
| 3 | Rated capacity | 450Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 48 | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈734kg | / |
| 7 | Total power of module | 21.6kwh | / |
| 8 | Maximum charging voltage | 54V | / |
| 9 | Maximum continuous charging current | 1C | 25±5℃ |
| 10 | Discharge cut-off voltage | 40.5V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |

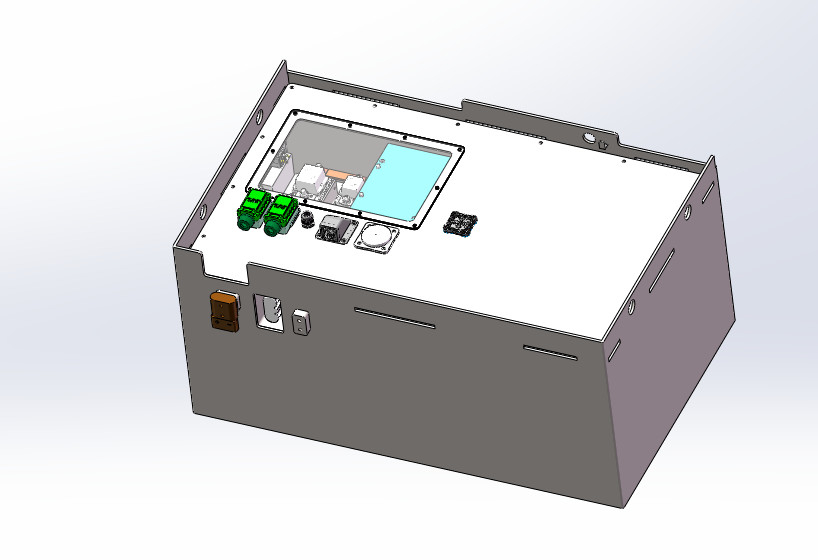

1. Fb20pn 48v450Ah battery pack
2. This product fb20pn common vehicle battery pack is made of YJT40110413-150Ah lithium iron phosphate battery in series and parallel.
3. The module uses iron connectors for laser welding between batteries.
4. The iron material is used as the shell to stabilize the module, which has high structural strength, and the module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The structure of the battery module inside the vehicle is made of refractory materials, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety, long cycle life and so on.
1. Reliable structure: high anti vibration structure strength;
2. Controllable process: no over welding, false welding, cracks, to ensure the perfect appearance of the battery pack;
3. Safety design: the module adopts high safety lithium iron phosphate material system;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
6. Environmental protection: the battery is green and environmentally friendly. It does not contain or appear any toxic and harmful heavy metal elements and substances such as lead, mercury, cadmium, etc. regardless of production, use and scrap.
The products are widely used in industrial vehicles, engineering vehicles and other fields.
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
