EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/UN38.3/SDS |
| Model Number: | EK-CC-2857 |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Rated Capacity: | 300Ah | Rated Voltage: | 25.6V |
|---|---|---|---|
| Size Of Battery Pack: | 620mm*280mm*625mm | Weight Of Battery Pack: | 115KG |
| Combination Mode: | 7P8S | High Resistance: | ≧50MΩ(DC500V) |
| Total Power Of Module: | 5.12kwh | Standard Cycle Life: | ≥2000 Times 80%Capacity Retention |
| High Light: | Rechargeable Lithium Ion Battery Pack,lifepo4 golf battery 25.6v300ah,Lithium Ion Battery Pack 25.6v300ah |
||
| NO. | Item | Specification | Remark |
| 1 | Size | 620mm*280mm*625mm | / |
| 2 | Combination mode | 7P8S | / |
| 3 | Rated capacity | 200Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 25.6V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈115kg | / |
| 7 | Total power of module | 5.12kwh | / |
| 8 | Maximum charging voltage | 28.8 | / |
| 9 | Maximum continuous charging current | 0.5C | 25±5℃ |
| 10 | Discharge cut-off voltage | 21.6 | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life |
≥2000 times 80%Capacity retention |
1C/1C 25℃ |

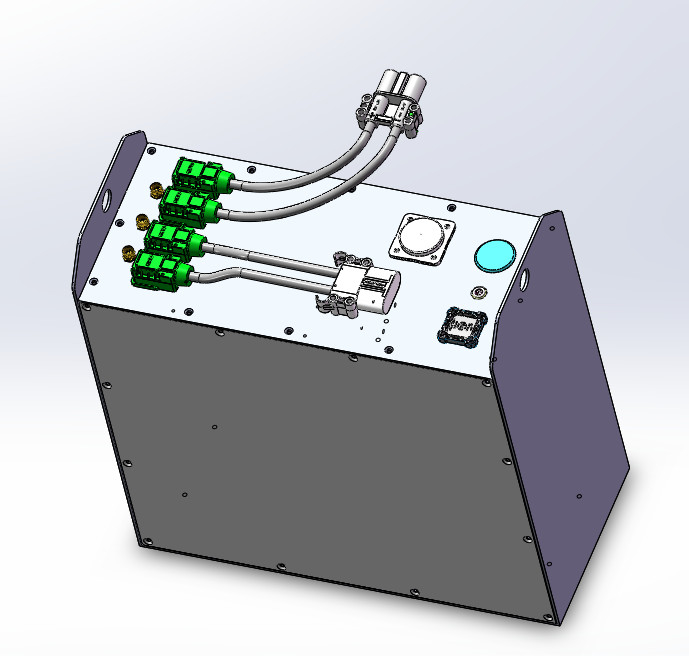

1. This product is the standard module of EIKTO lithium iron phosphate battery, which is made of YJT19124133-28Ah lithium iron phosphate battery in series and parallel.
2. Laser welding is performed between batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: reasonable structural layout makes the overall structure of the battery pack firm and reliable;
2. Electrical reliability: reasonable electrical design layout makes the battery pack function balanced and stable;
3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;
4. It has remote monitoring and real-time viewing of battery information
The products are widely used in industrial vehicles, engineering vehicles and other fields.
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
