EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/IEC |
| Model Number: | EK-CP-0916 |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Product Name: | Lithium Iron Phosphate Forklift Lithium Battery | Product Model: | EK-CP-0916 |
|---|---|---|---|
| Rated Capacity: | 350Ah | Rated Voltage: | 51.2V |
| Battery Pack Size: | 1030mm * 350mm * 780mm | Battery Pack Weight: | 235kg |
| High Light: | Electric Forklift Lithium Battery,Lifepo4 Lithium Iron Phosphate Battery Packs,Forklift Lithium Battery 350Ah |
||
| NO. | Item | Specification | Remark |
| 1 | Size | 1030mm*350mm*780mm | / |
| 2 | Combination mode | 2P16S | / |
| 3 | Rated capacity | 350Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 51.2V | / |
| 5 | High resistance | ≧50MΩ(DC1000V) | 25±2℃ |
| 6 | Weight | ≈235kg | / |
| 7 | Total power of module | 17.92kwh | / |
| 8 | Maximum charging voltage | 57.6V | / |
| 9 | Maximum continuous charging current | 1C | 25±5℃ |
| 10 | Discharge cut-off voltage | 34.2V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life |
≥3000 times 80%Capacity retention |
1C/1C 25℃ |

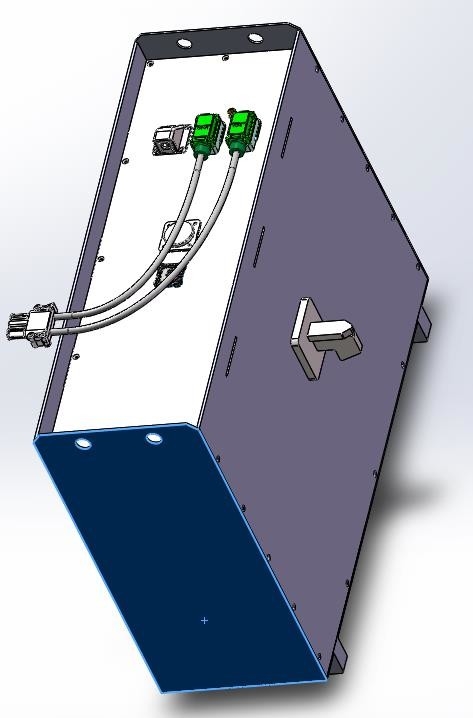

1. This product is the standard module of EIKTO lithium iron phosphate battery, which is made of 3.2V175Ah lithium iron phosphate batteries in series and parallel.
2. Laser welding is performed between the batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: high anti vibration structure strength;
2. Controllable process: no over welding and false welding, ensuring 100% battery damage;
3. Safety design: adopt high safety lithium iron phosphate material system;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with a heating system to make the battery work normally in a low temperature environment.
The products are widely used in industrial vehicles, engineering vehicles and other fields.
