| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/IEC |
| Model Number: | EK-CP-0842 |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Product Name: | Lithium Iron Phosphate Forklift Lithium Battery | Product Model: | EK-CP-0842 |
|---|---|---|---|
| Rated Capacity: | 525Ah | Rated Voltage: | 76.8V |
| Battery Pack Size: | 1110mm * 640mm * 570mm | Battery Pack Weight: | 440kg |
| High Light: | Forklift Lithium Ion Battery System,3000 Times deep cycle forklift batteries,76.8V525Ah Lithium Ion Battery System |
||
| NO. | Item | Specification | Remark |
| 1 | Size | 1110mm*640mm*570mm | / |
| 2 | Combination mode | 3P24S | / |
| 3 | Rated capacity | 525Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 76.8V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈440kg | / |
| 7 | Total power of module | 40.32kwh | / |
| 8 | Maximum charging voltage | 86.4V | / |
| 9 | Maximum continuous charging current | 0.5C | 25±5℃ |
| 10 | Discharge cut-off voltage | 64.8V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life |
≥3000 times 80%Capacity retention |
1C/1C 25℃ |

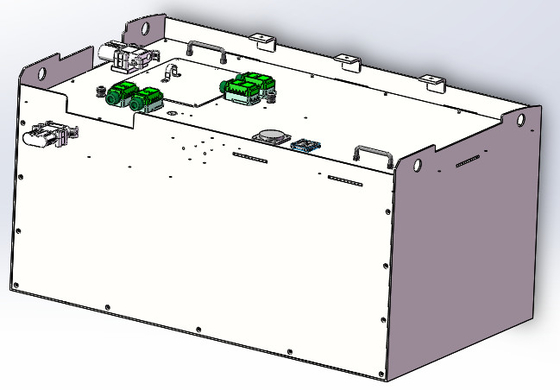

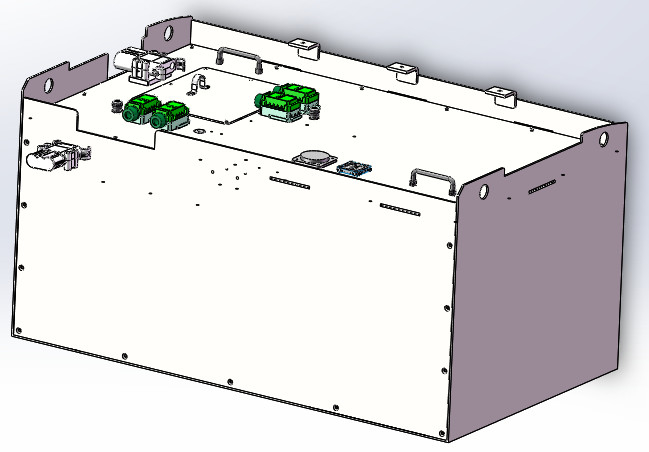

1. This product is an EIKTO lithium iron phosphate battery system, which is made of 175Ah lithium iron phosphate batteries in series and parallel.
2. Laser welding is performed between the batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory material, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: reasonable structure layout makes the overall structure of the battery pack firm and reliable;
2. Electrical reliability: reasonable electrical design and layout make the battery pack function balanced and stable;
3. Safety design: many fire-retardant and other safety layouts are arranged inside the system, and high safety lithium iron phosphate material system is adopted;
4. Remote monitoring and real-time viewing of battery information
The products are widely used in industrial vehicles, engineering vehicles and other fields.
