EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/UN38.3/SDS |
| Model Number: | 25.6V150Ah |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | Within 30 days if order under 200 pieces; More than 200 pieces need to be negotiated. |
| Payment Terms: | EFT |
| Supply Ability: | +9999 |
| Product Name: | XT03 Lithium Iron Phosphate Forklift Lithium Battery | Product Model: | 25.6V150Ah |
|---|---|---|---|
| Rated Capacity: | 150Ah | Rated Voltage: | 25.6V |
| Size Of Battery Pack: | 770mm*274mm*610mm | Weight Of Battery Pack: | 263kg |
| High Resistance: | ≧50MΩ(DC500V) | Total Power Of Module: | 3.84kwh |
| High Light: | 3.84kwh Lithium Tractor Battery,Tractor lithium ion battery system,Lithium Tractor Battery 25.6v150ah |
||
| NO. | Item | Specification | Remark |
| 1 | Size | 770mm*274mm*610mm | / |
| 2 | Combination mode | 5P8S | / |
| 3 | Rated capacity | 150Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 25.6V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈263kg | / |
| 7 | Total power of module | 3.84kwh | / |
| 8 | Maximum charging voltage | 28.8 | / |
| 9 | Maximum continuous charging current | 1C | 25±5℃ |
| 10 | Discharge cut-off voltage | 19.2 | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life |
≥3000 times 80%Capacity retention |
1C/1C 25℃ |

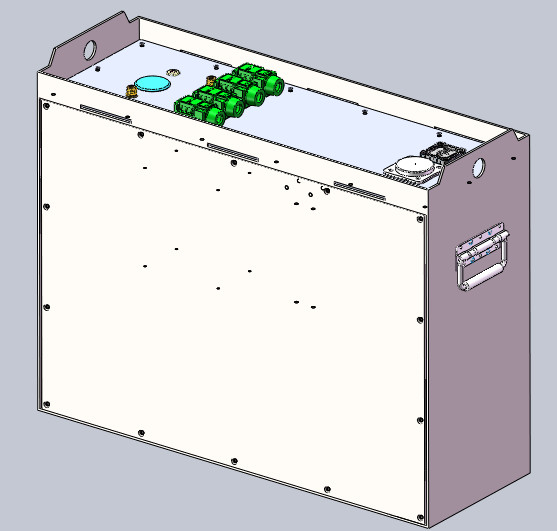

1. This product is an EIKTO lithium iron phosphate battery module, which is made of 30ah lithium iron phosphate batteries in series and in parallel.
2. Laser welding is performed between batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. The box is waterproof IP54, and the structure is firm
2. Reliable electrical performance to meet long-time work
3. Fast charging, safe and reliable;
4. It has remote monitoring and real-time viewing of battery information
The products are widely used in industrial vehicles, engineering vehicles and other fields.
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
