EIKTO Professional lithium iron phosphate battery manufacturer.
Sales & Support:
 |
| Place of Origin: | Anhui China |
| Brand Name: | EIKTO |
| Certification: | CE/UL/UN38.3/SDS |
| Model Number: | YJT40110413-135Ah-M20 |
| Minimum Order Quantity: | One piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard safety industrial packaging |
| Delivery Time: | within 10 days if order under 1000 pieces; negotiation if over |
| Payment Terms: | EFT |
| Supply Ability: | +99999 |
| Product Name: | Lithium Iron Phosphate Battery | Product Model: | YJT40110413-135Ah-M20 |
|---|---|---|---|
| Rated Capacity: | 135Ah | Rated Voltage: | 51.2/25.6/12.8V |
| Battery Pack Size: | 366.2mm*427.6mm*241.22mm | Battery Pack Weight: | 91kg |
| High Light: | 8.640kwh battery power module,12 volt rechargeable lithium battery pack,EIKTO battery power module |
||
| NO. | Item | Specification | Remark |
| 1 | Dimension | 366.2mm*427.6mm*241.22mm | / |
| 2 | Combination mode | 1P20S 2P10S 4P5S | / |
| 3 | Rated Capacity | 135Ah/270Ah/540Ah | 25±2℃,1.0C |
| 4 | Nominal Voltage | 64/32/16V | / |
| 5 | insulation resistance | ≧50MΩ(DC1000V) | 25±2℃ |
| 6 | Module Weight | ≈91kg | / |
| 7 | Module energy | 8.640kwh | / |
| 8 | Max Charging Voltage | 72/36/18V | / |
| 9 | Maximum Continuous Charging Current | 1C | 25±5℃ |
| 10 | Discharge Cut-off Voltage | 50/25/12.5V | / |
| 11 | Max. Continuous Discharging Current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥4000 times 80%Capacity retention | 1C/1C 25℃ |
Lithium battery Lithium iron phosphate Iron Module 3.2V135AH square aluminum shell Heating system

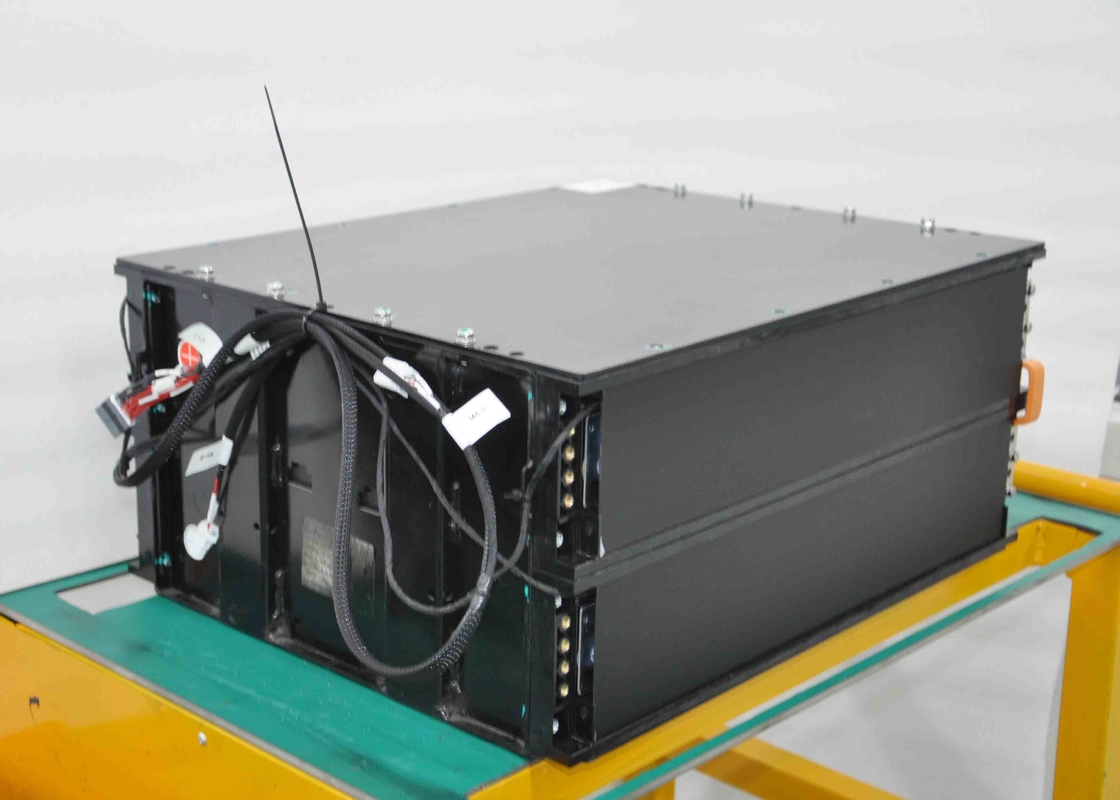

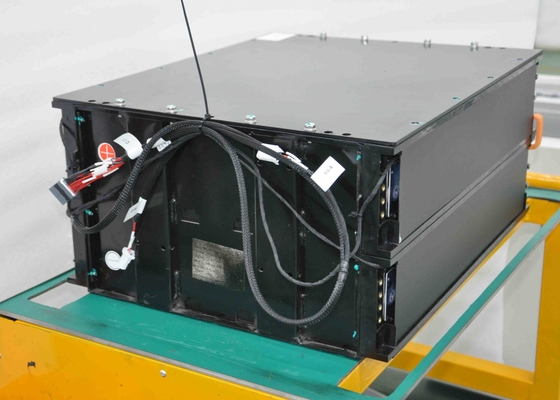

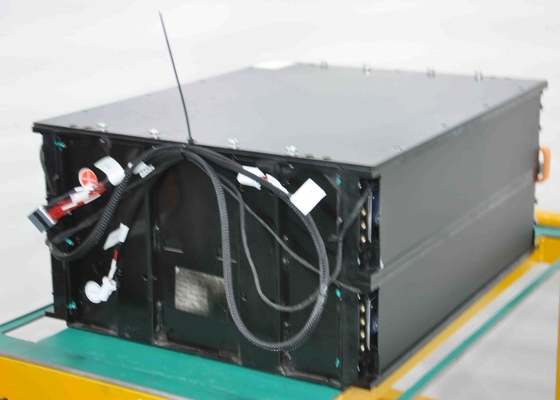

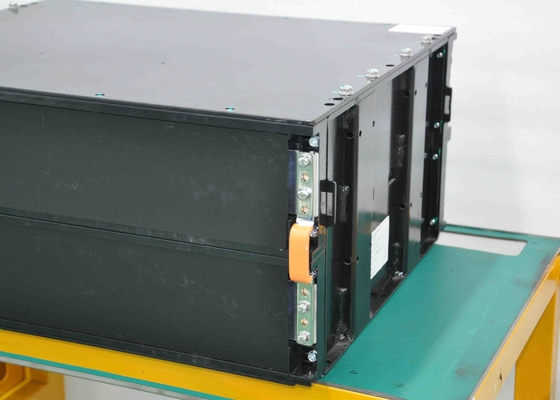

This product is the standard module of EIKTO 20-core lithium iron phosphate battery, which is formed by series and parallel connection of YJT40110413-135AH lithium iron phosphate battery. Laser welding is carried out between the cells using Iron connecting pieces. The Iron material is used as envelop to stabilize the module, which has high structural strength. The module can be equipped with a battery heating system, so that the battery can work normally in low temperature environment. The internal structure of the module is made of flame resistant material, which greatly reduces the risk caused by heating. The module has the advantages of light weight, strong stability, high safety and long cycle life.
1. Reliable structure: high anti-vibration structure strength;
2. Controllable process: no over welding and false welding to ensure 100% no damage to the cell;
3. Safety design: high safety lithium iron phosphate material system is adopted;
4. Good module stability: strict cell matching conditions, good cell consistency;
5. Heating system: the module can be equipped with heating system to make the battery work normally in low temperature environment.
1. Guaranteed delivery time.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
1. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia and many other countries.
2. Flexible and Untraceable payment terms.
3. Good after-sale service.
4. We offer high quality products at competitive price in quick delivery.
Contact Person: Mr. Andy
Tel: 400-088-158
